Sante DICOM Editor


Attach PDF report files to study

The program has the ability to attach PDF report files to local and remote studies. It creates a DICOM file that encapsulates the PDF report file, it creates a new series with description "PDF Report" that contains this new file and it attaches the series to the desired study.

Contents


Attach a PDF report file to local study

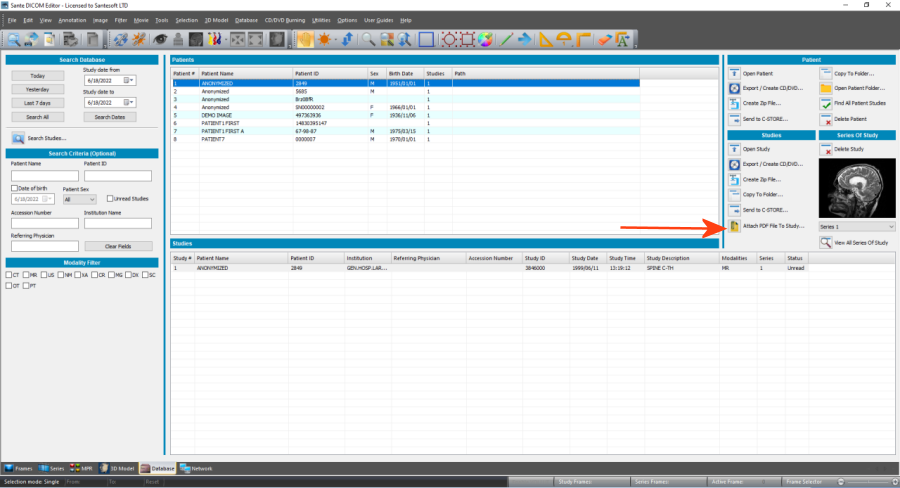

Select the "Database" tab from the mode selection control, in the lower left corner of the main window.



Query the database to find the study in which you wish to attach the pdf file. Then, select the desired study and press the "Attach PDF File To Study" button.

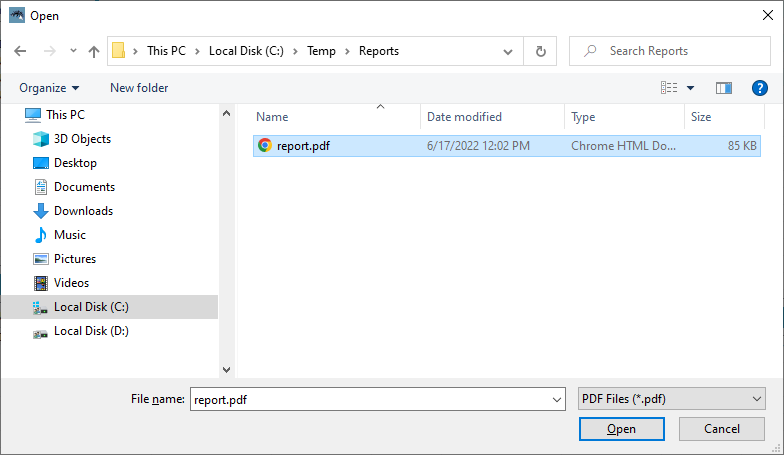

Select the PDF report file and press the "Open" button.



After that, the program attaches the selected PDF report file to the study.

Back to contents


Attach a PDF report file remote to study

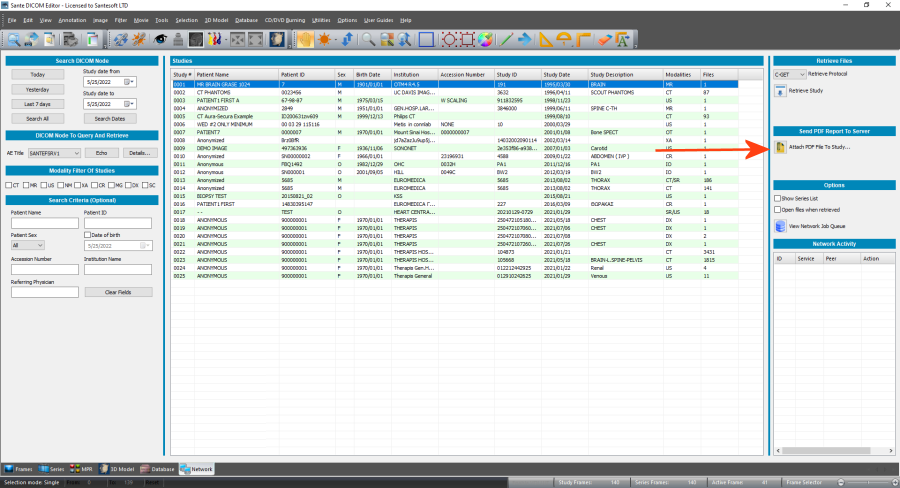

Select the "Network" tab from the mode selection control, in the lower left corner of the main window.



Query the server to find the study in which you wish to attach the pdf file. Then, select the desired study and press the "Attach PDF File To Study" button. There is no need to download locally the study.



Select the PDF report file and press the "Open" button.



After that, the program attaches the selected PDF report file to the study.

Back to contents
